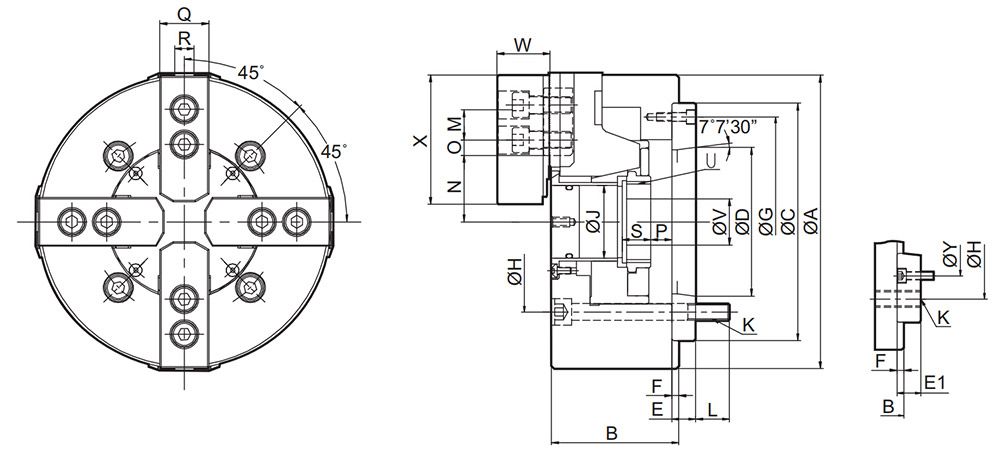

产品图纸
产品参数
| 性能参数Performance parameters | |||||||||||
| 型号/规格. | 主轴头号 | 通孔直径 (mm) | 柱塞行程(mm) | 爪行程 (直径r) (mm) | 最高回转速 (r.p.m) | 最大拉力 kgf(KN) | 最大夹持力 (kgf) | 最大设定油压压力 (kgf/cm2) | 净重 (kg) | 搭配油缸型号 | 夹持范围 |
| YK4-06" | A25 | 45 | 12 | 5.5 | 4500 | 1630 | 4180 | 21 | 14.2 | TK646 | Φ15~Φ169 |
| YK4-08" | A26(A25) | 52 | 16 | 7.4 | 3600 | 2440 | 6010 | 19 | 24.5 | TK852 | Φ20~Φ210 |
| YK4-10" | A28(A26) | 75 | 19 | 8.8 | 3200 | 3160 | 8050 | 20 | 38.1 | TK1075 | Φ26~Φ254 |
| YK4-12" | A28 | 91 | 23 | 10.6 | 2500 | 4080 | 10400 | 20 | 60.5 | TK1291 | Φ30~Φ304 |
| YK4-15" | A211(A28) | 117.5 | 23 | 10.6 | 1800 | 5400 | 12600 | 19 | 111.5 | TK1512 | Φ50~Φ381 |
| 尺寸参数 | ||||||||||||||||||||||||||
| 型号/规格. | A | B | C (h6) | D | E | E1 | F | G | H | H1 | J | K | L | M | N max. | N min. | O max. | O min. | P max. | P min. | Q | R | S | T | U | X |
| YK4-06" | 169 | 81 | 140 | 82.536 | 15 | / | 5 | 116 | 104.4 | PCDΦ145 | 45 | 6-M10×1.5P | 16 | 20 | 32 | 29.25 | 24 | 7 | 11 | -1 | 31 | 12 | 19 | 2 | M55×2P | 73 |
| YK4-08" | 210 | 91 | 170 | 106.375 | 17 | 23 | 5 | 150 | 133.4 | PCDΦ180 | 52 | 6-M12×1.75P | 18 | 25 | 38.7 | 35 | 30 | 10 | 14.5 | -1.5 | 35 | 14 | 20.5 | 2 | M60×2P | 95 |
| YK4-10" | 254 | 100 | 220 | 139.719 | 18 | 28 | 5 | 190 | 171.4 | PCDΦ225 | 72 | 6-M16×2P | 25 | 30 | 51 | 46.6 | 34 | 12 | 8.5 | -10.5 | 40 | 16 | 25 | 2 | M85×2P | 110 |
| YK4-12" | 304 | 110 | 220 | 139.719 | 18 | / | 6 | 190 | 171.4 | PCDΦ250 | 91 | 6-M16×2P | 25 | 30 | 61.3 | 56 | 46 | 12 | 8 | -15 | 50 | 21 | 28 | 2 | M100×2P | 129 |
| YK4-15" | 380 | 133 | 300 | 196.869 | 22 | 33 | 6 | 260 | 235 | PCDΦ324 | 117.5 | 6-M20×2.5P | 28 | 43 | 82.7 | 77.4 | 46 | 13 | 8 | -15 | 62 | 21 | 42.5 | 5 | M130×2P | 165 |
